Sim Racing Rig Space Calculator (Cockpit Footprint and Clearance)

The number that decides whether a sim rig works in your room is not the cockpit length in the product listing. It is the total footprint: the frame, plus the screen depth in front of the wheel, plus recline space behind the seat, plus enough side clearance that you can actually climb in. That total runs roughly 78 to 106 inches long and 80 to 90 inches wide depending on the frame and the screens. If your room is smaller than that, a folding cockpit is almost always the answer, because it is the only rig type whose in-use footprint and stored footprint are different numbers.

Rig space calculator

Measure your room in inches, wall to wall, along the two directions the rig could face. Pick the frame type, the driving position and the screen setup. The tool returns the footprint in inches and in feet and inches, tells you whether it fits in either orientation, and breaks out each clearance so you can see which one is costing you the space.

How the footprint number is built

The arithmetic is deliberately simple so you can check it against a tape measure. Length is a straight sum of four parts, and width is the wider of the frame or the screen array plus the clearance you need to get into the seat.

• Frame length. The cockpit itself, front edge of the pedal plate to the back of the seat frame, in its normal driving setting.
• Driving position. A reclined formula position adds about 6 inches, because the seat moves back and the legs run forward toward a raised pedal plate.
• Screen depth in front of the wheel. Between 20 and 30 inches depending on the setup. This is the part people forget, and it is frequently larger than they expect once a freestanding stand and its feet are included.
• Recline space behind the seat. A flat 12 inches. The seat back sweeps rearward through its adjustment range and cables have to route somewhere.
• Side clearance. 18 inches on the side you get in from and 4 inches on the other side, so 22 inches total added to the wider of the frame or the screens.

Worked through for the default settings, a folding cockpit in an upright GT position with triple 27 inch panels comes to 46 plus 0 plus 26 plus 12, which is 84 inches of length, and the screens at 58 inches wide plus 22 inches of clearance, which is 80 inches of width. That is 7 feet by 6 feet 8 inches, and it fits inside a 12 by 10 foot room with room to walk past.

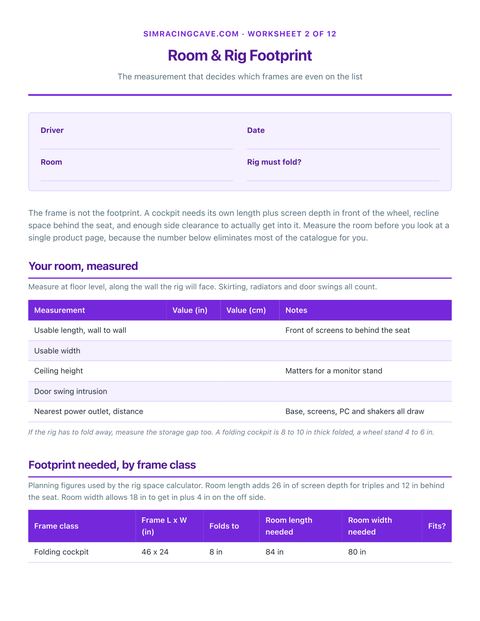

Typical cockpit footprints by type

These are researched figures drawn from published manufacturer dimensions across the main frame categories, rounded to whole inches because rig geometry is adjustable and no two people set a seat the same way. The last column is the practical room length once triple screens and both clearances are included, which is the number you should compare against your wall.

The pattern is worth stating plainly. Going from a folding frame to an aluminium profile rig costs you nearly 2 feet of room length before you have added a single component. That is the real trade behind the wheel stand versus full cockpit question, and it is why the frame decision should come before the wheelbase decision in any rig build plan.

The three clearances people forget

Screen depth in front of the wheel

A monitor stand does not sit flush against the wheel deck. Triple 27 inch panels angled inward put the side screens closer to you than the centre one, and the stand feet project forward at the base. Twenty-six inches from the wheel rim to the back of the stand is a realistic allowance. A large TV on a floor stand is worse, closer to 30 inches, because the stand base has to be wide and deep enough not to tip. Wall mounting a TV recovers most of that depth, which is often the single cheapest way to make a rig fit.

Recline space behind the seat

Twelve inches is not generous, it is the minimum that keeps a reclining seat working. If you are building a reclined formula position, the seat is already further back in its travel and the headrest is already closer to the wall. This is also where the wheelbase power brick, the pedal USB cable and any bass shaker wiring end up, and cables that are pinched against a wall get damaged.

Side clearance to get in and out

Eighteen inches on the entry side sounds like a lot until you try to swing a leg over a wheel deck in a 12 inch gap. On rigs with a low, wide front bar the practical entry route is over the side of the seat, and that needs standing room. The other side can be tight, 4 inches is enough to keep the frame off the wall and let air move, but do not put both sides tight against furniture unless the rig is on wheels.

What to do when the room does not fit

In order of how much space each move buys you, and how little it costs:

1. Wall mount the screen. Recovers 8 to 12 inches of length instantly and costs the price of a bracket.
2. Turn the rig 90 degrees. Most rooms are not square. The calculator checks both orientations for you.
3. Drop from triples to an ultrawide. Saves roughly 26 inches of width and a couple of inches of depth. Read the triples versus ultrawide comparison before you decide what you are giving up.
4. Switch to a folding frame. Cuts 16 to 22 inches of length against a fixed steel cockpit, and the rig disappears between sessions.
5. Move to an upright GT position. Six inches, free, and it also happens to suit GT and rally sims better than a reclined formula position does.

What does not work is buying a smaller screen and sitting further back. Field of view is set by how much of your vision the screen fills, so a small panel at a distance gives you a narrow, disconnected image without saving meaningful room length. If you are choosing screens, run the numbers in the triple monitor FOV calculator and the screen size and distance calculator before you buy, not after.

Frame rigidity is a space decision too

Space and torque are linked, and the link surprises people. A direct drive wheelbase above roughly 8 newton metres will drag a desk clamp around, and above roughly 12 newton metres a light folding cockpit will visibly flex or walk across the floor. That means the small-room answer and the high-torque answer pull in opposite directions: the frame that fits your room may cap the base you can usefully run. Torque you cannot mount is torque you cannot use, so pick the frame for the room first and the base second.

For the full dimensional picture, including seat heights, wheel deck widths and monitor stand depths, see the sim rig dimensions chart. If you are still deciding between frame types rather than measuring one, the cockpit roundup covers folding, fixed and profile frames at each price point.
